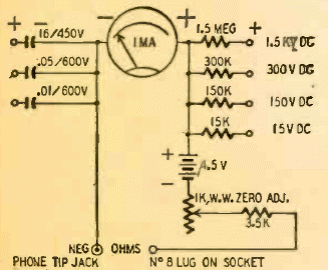

This simple switchless circuit was found in documentation from 1947. It can be used with a common scrap instrument, only the scales need to be worked out. The test leads are plugged into appropriate jacks.
Basic Switchless Multimeter (T1178E)
- Details
- Written by: Newton C. Braga
