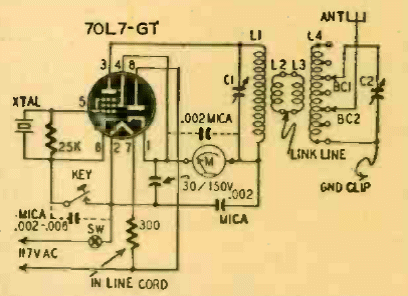

This is a 1 tube transmitter found on a Radio Craft from April 1948. The circuit is mains powered and operates in the amateur radio bands. The coils given are for 40 meters.
5W Transmitter (T1251E)
- Details
- Written by: Newton C. Braga
This is a 1 tube transmitter found on a Radio Craft from April 1948. The circuit is mains powered and operates in the amateur radio bands. The coils given are for 40 meters.
