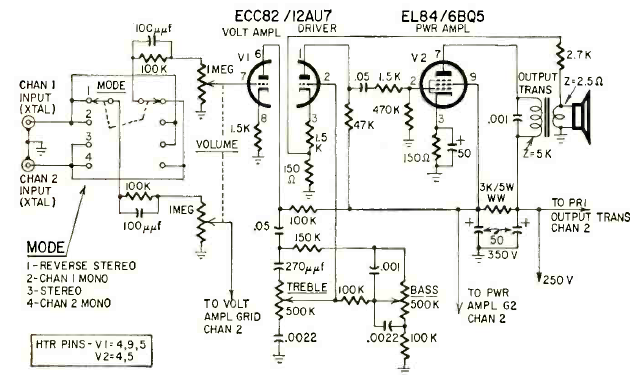

This is one of the channels of a stereo amplifier published in the Radio Electronics magazine of November 1960. The circuit must be powered by a source with the indicated voltage and was suggested to have been obtained from the Haut Parleur magazine of the time.
| Clique na imagem para ampliar |
