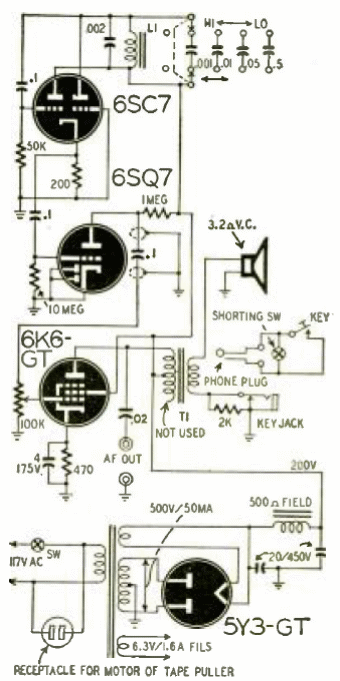

This 4-tube circuit was found in Radio Craft in January 1948. The circuit is useful for bench testing. The power supply is isolated from the power grid.
Bench Top Audio Oscillator (T1217E)
- Details
- Written by: Newton C. Braga
This 4-tube circuit was found in Radio Craft in January 1948. The circuit is useful for bench testing. The power supply is isolated from the power grid.
