FM Tuner (T1196E)
- Details
- Written by: Newton C. Braga

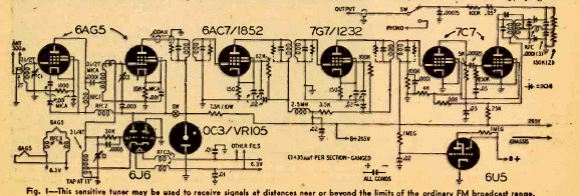

This is the typical circuit of a 1947 FM tuner. Found on a Radio Craft of the time it uses tubes in a common configuration. There was still no FM stereo.
