Vintage Oscilloscope (T1191E)

Details
Written by: Newton C. Braga

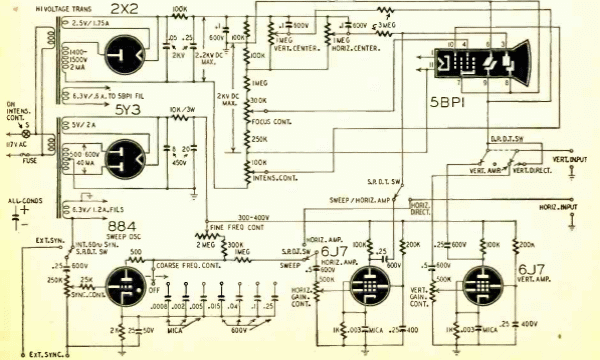

This basic oscilloscope diagram was found in a November 1947 Radio Craft. The circuit uses 5 tubes and a then-era TRC. The frequency should be at most a few megahertz as is normally expected from this type of circuit.
