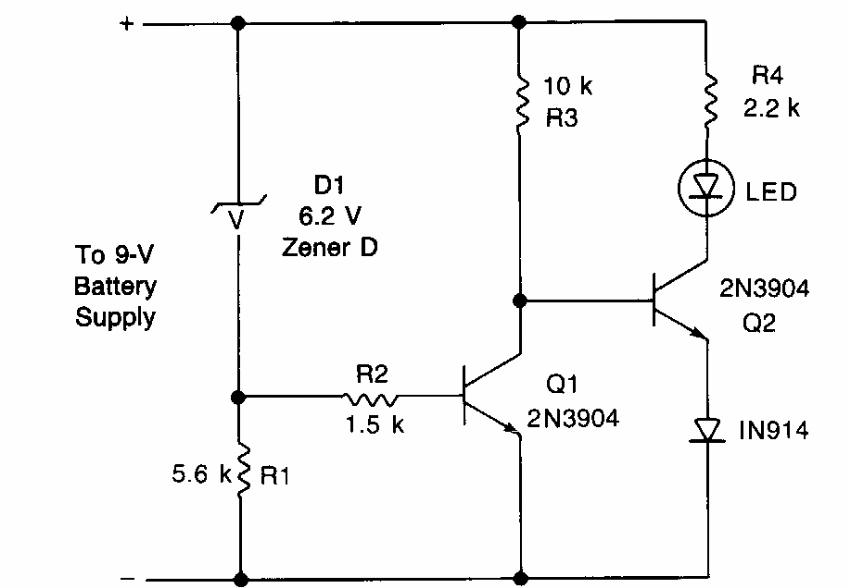

This circuit is from an American 80's documentation. The circuit indicates when the voltage of a 9 V battery drops below 7 V. The transistors can be BC548.
| Clique na imagem para ampliar |
Battery Voltage Monitor (CB6066E)
- Details
- Written by: Newton C. Braga
