Intercom (T1203E)

Details: Written by: Newton C. Braga

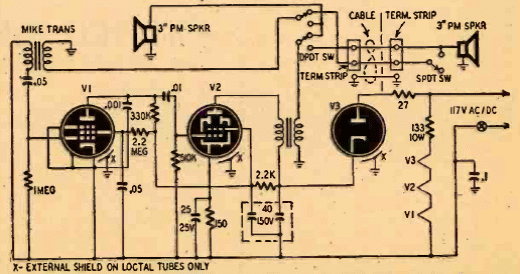

This intercom circuit has an interesting configuration, as described in the December 1947 Radio Craft magazine. The 3-tube circuit is powered by a transformerless power source and its range depends on the losses in the cables.
