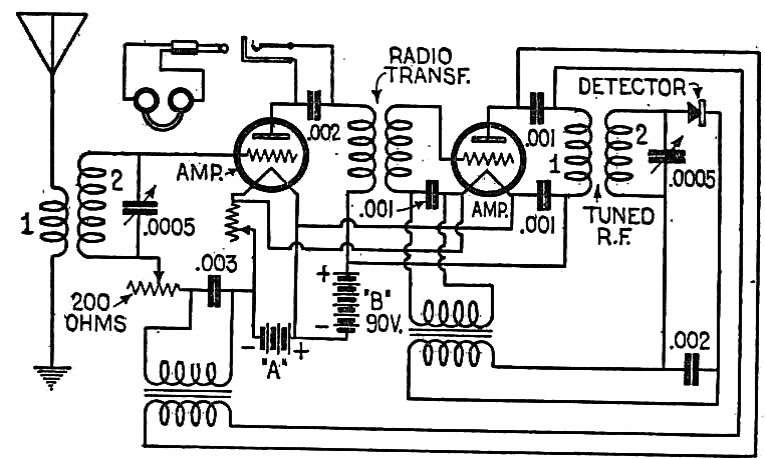

Two batteries reflex receiver (T1655E)

Details
Written by: Newton C. Braga



This receiver circuit was found in documentation from 1924. The circuit uses two batteries, the high voltage one being 90 V.
