Source follower (CB6963E)

Details
Written by: Newton C. Braga

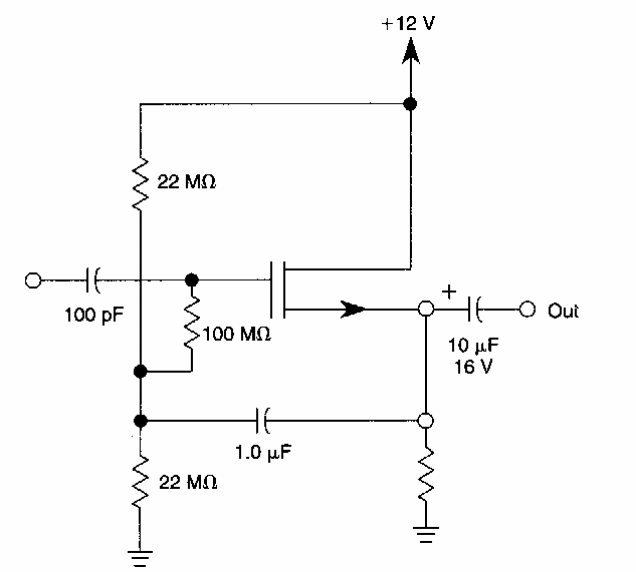

     Found in American documentation, this circuit shows how to polarize a FET in bootstrap mode. The circuit applies to any FET.
