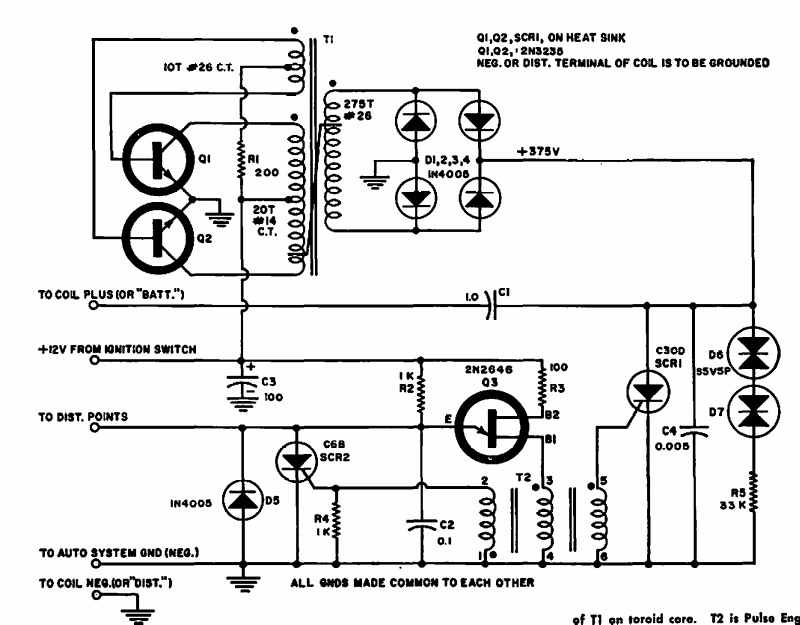

This circuit was found in an American 1960s documentation. The circuit uses transistors of the time and an SCR that can be commonly used for a current of the order of 6 A and voltage of at least 600 V.
| Clique na imagem para ampliar |
Electronic Ignition (CB6385E)
- Details
- Written by: Newton C. Braga
