SCR Astable (CB6804E)

Details
Written by: Newton C. Braga

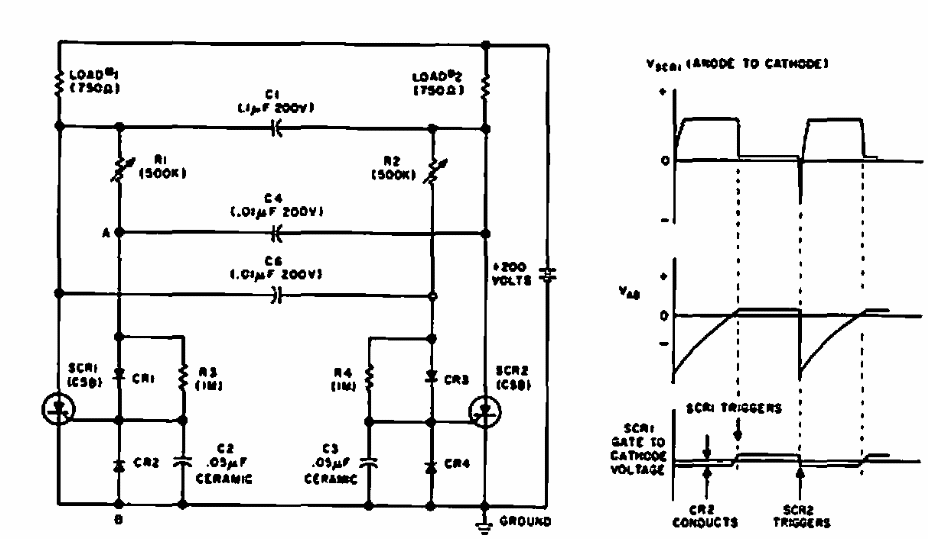

     This circuit was suggested by a 1967 General Electric manual. The waveforms of the generated signals are shown next to the diagram. Equivalent modern SCRs can be used.




| Clique na imagem para ampliar |
