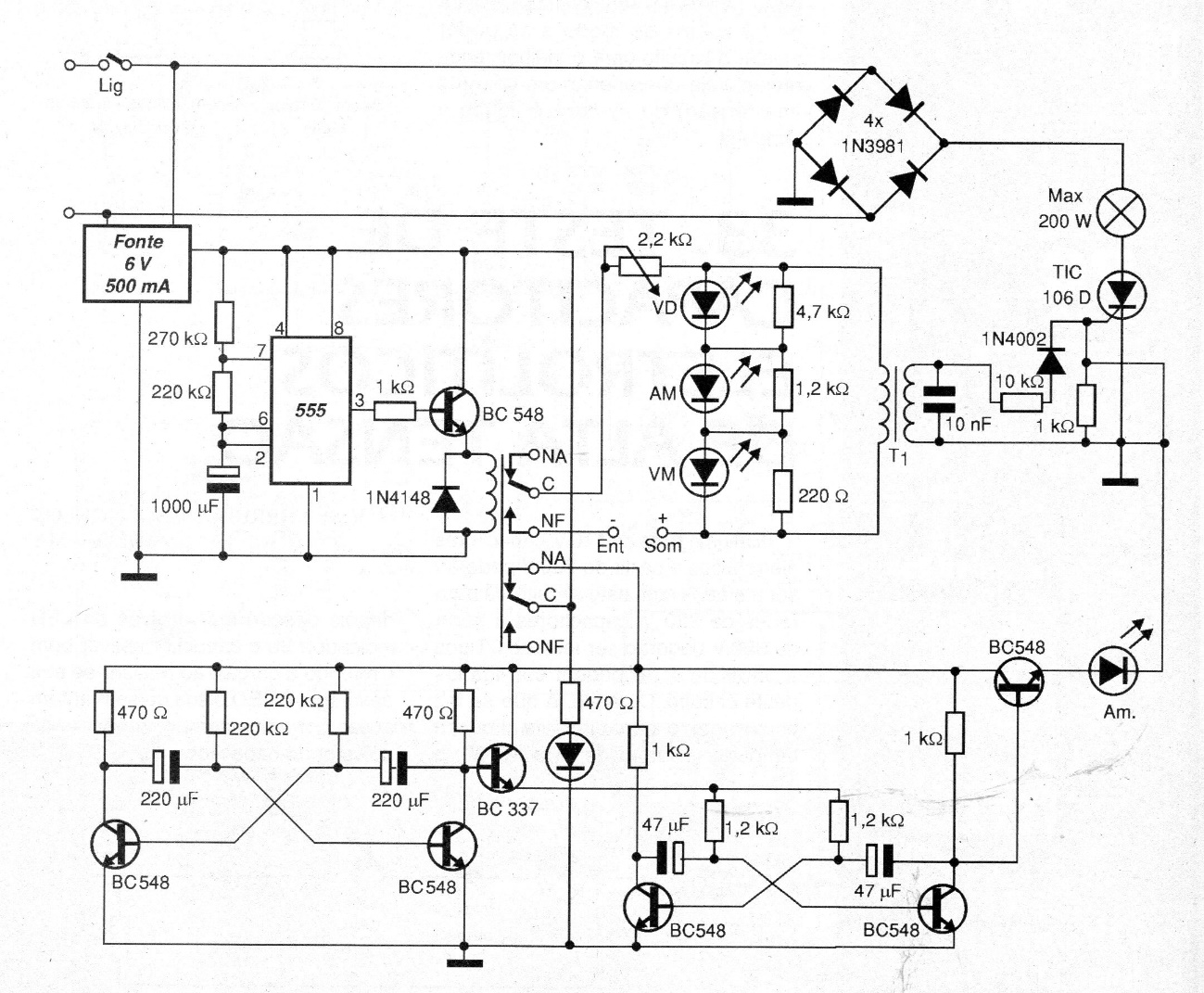

This system makes use of incandescent lamps only and uses a SCR with a full wave bridge for powers up to 200 W. The circuit is from 2004 documentation. The SCR must be mounted on a heat sink. The 6 V power supply can be based on a type 7806 regulator with a small heat sink.
| Clique na imagem para ampliar |
