Low Noise Infrared Detector (CB6369E)

Details
Written by: Newton C. Braga

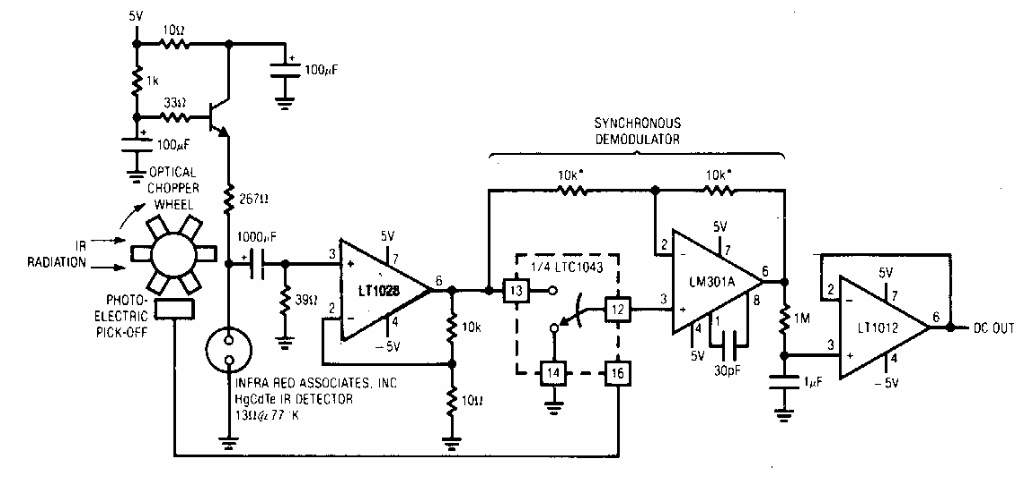

     We found this circuit in a Linear Technology documentation from the 80's. It has a demodulator, being suitable for links and remote controls. Note the unusual type of detector configuration.
