Notch Filter 3 to 20 dB Bandwidth (CB6714E)

Details
Written by: Newton C. Braga

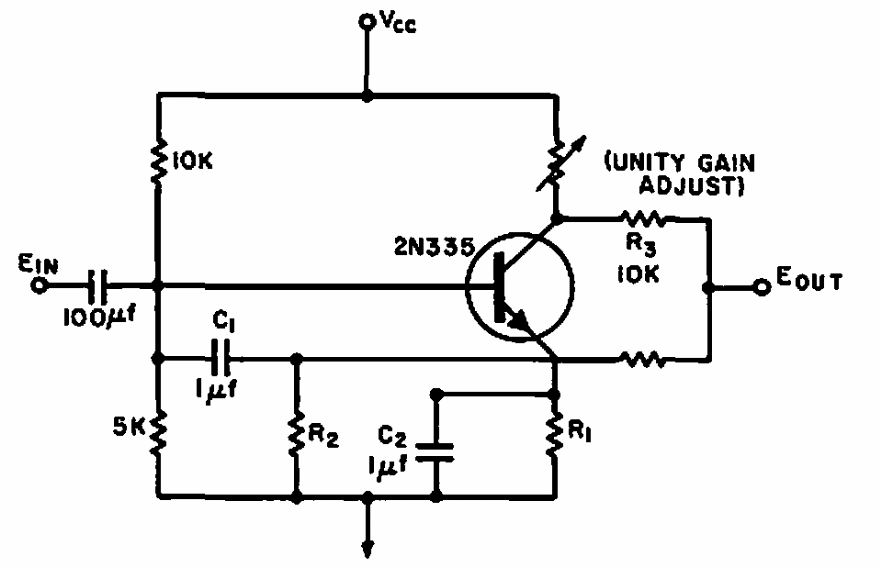

     This circuit was found in a 1964 Electronic Design. The transistor may be a current equivalent of general use. The frequency ranges from 100 to 150 Hz.
