Positive only switch (CB6924E)

Details
Written by: Newton C. Braga

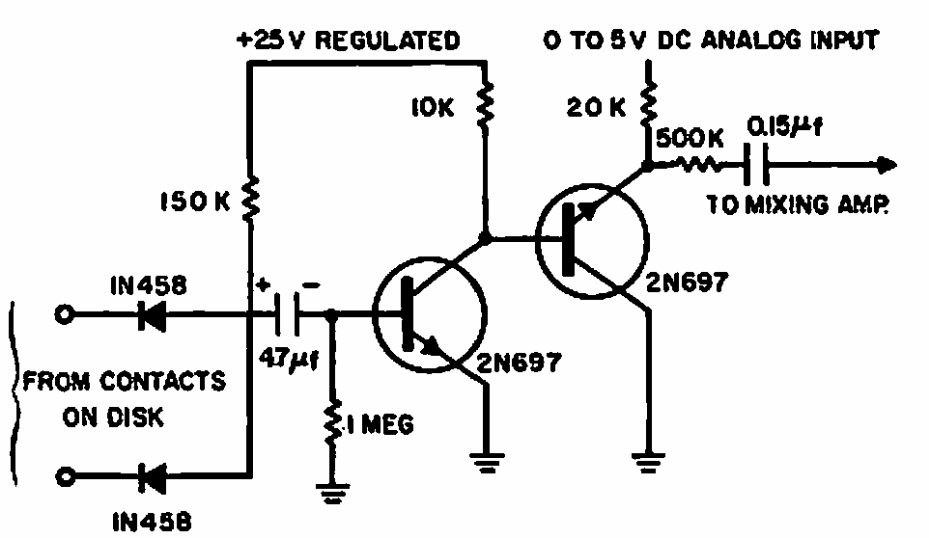

    This circuit was found in a 1965 Electronic Design. What it does is respond only to positive pulses (above zero volts) and can be used in automation systems.
