Cycloid adapter (CB6904E)

Details
Written by: Newton C. Braga

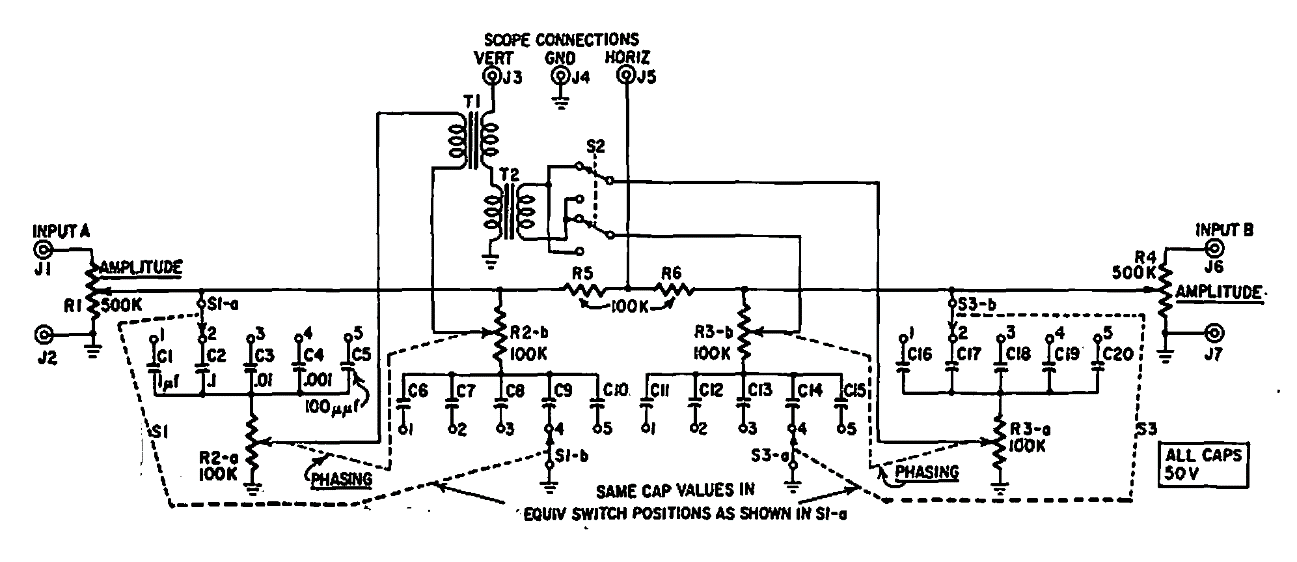

    The purpose of this 1965 Radio Electronics circuit is to help observe cycloid waveforms on an oscilloscope. The circuit uses only passive components.




| Clique na imagem para ampliar |
