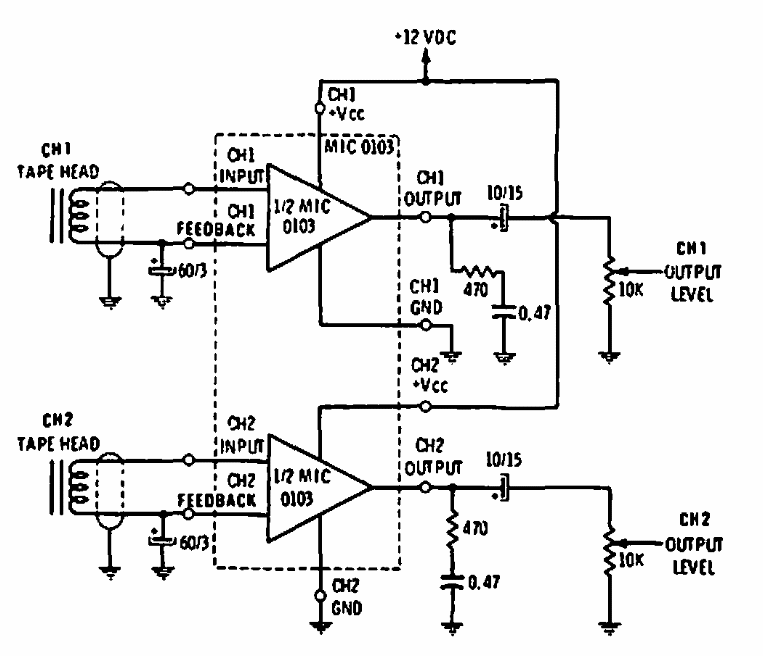

Pre for stereo playback (CB7336E)

Details
Written by: Newton C. Braga



    This circuit is from Mallory 1968 documentation. The circuit makes use of period components and equalization and NAB.
