Single Pump Control (CB6272E)

Details
Written by: Newton C. Braga

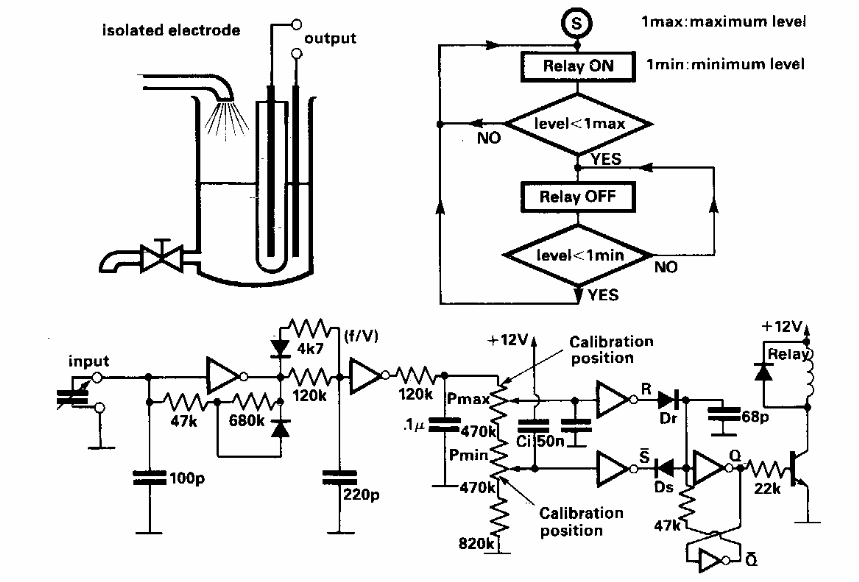

     Using only one integrated circuit this control was found in an 80's Electronic Engineering. The circuit has the drive's logic information and must be powered by an isolated power source.




| Clique na imagem para ampliar |
