Printer Error Alarm (CB6519E

Details: Written by: Newton C. Braga

)

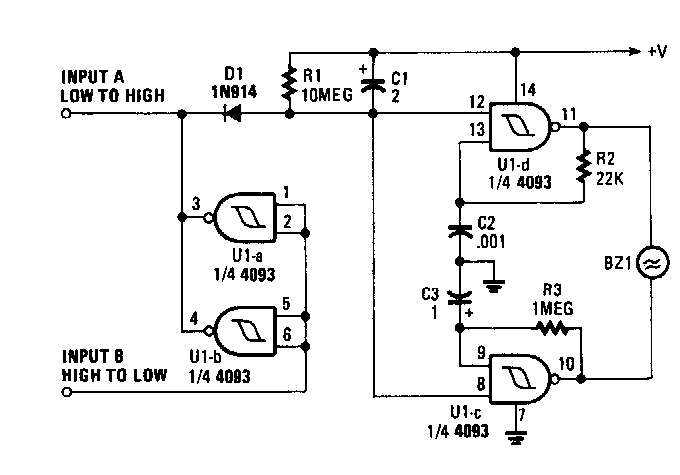

This circuit was found in a 80’s Popular Electronics. It issues a warning signal with the signal of the old type printer with parallel port.
