Reversible sequential for LED (CB6945E)

Details
Written by: Newton C. Braga

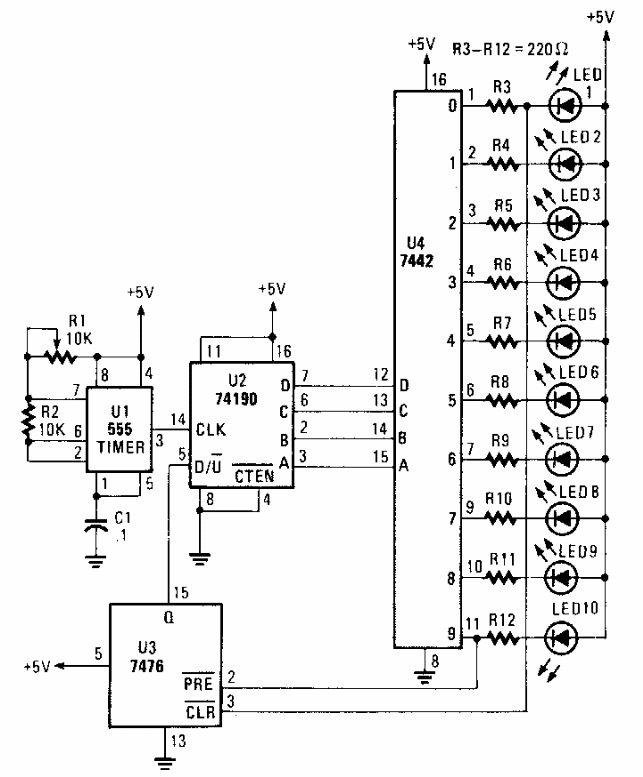

     This circuit is from an old Popular Electronics, but it can be easily implemented nowadays, even adapted to act as a shield. The circuit has the frequency given by C1 and adjusted in R1.
