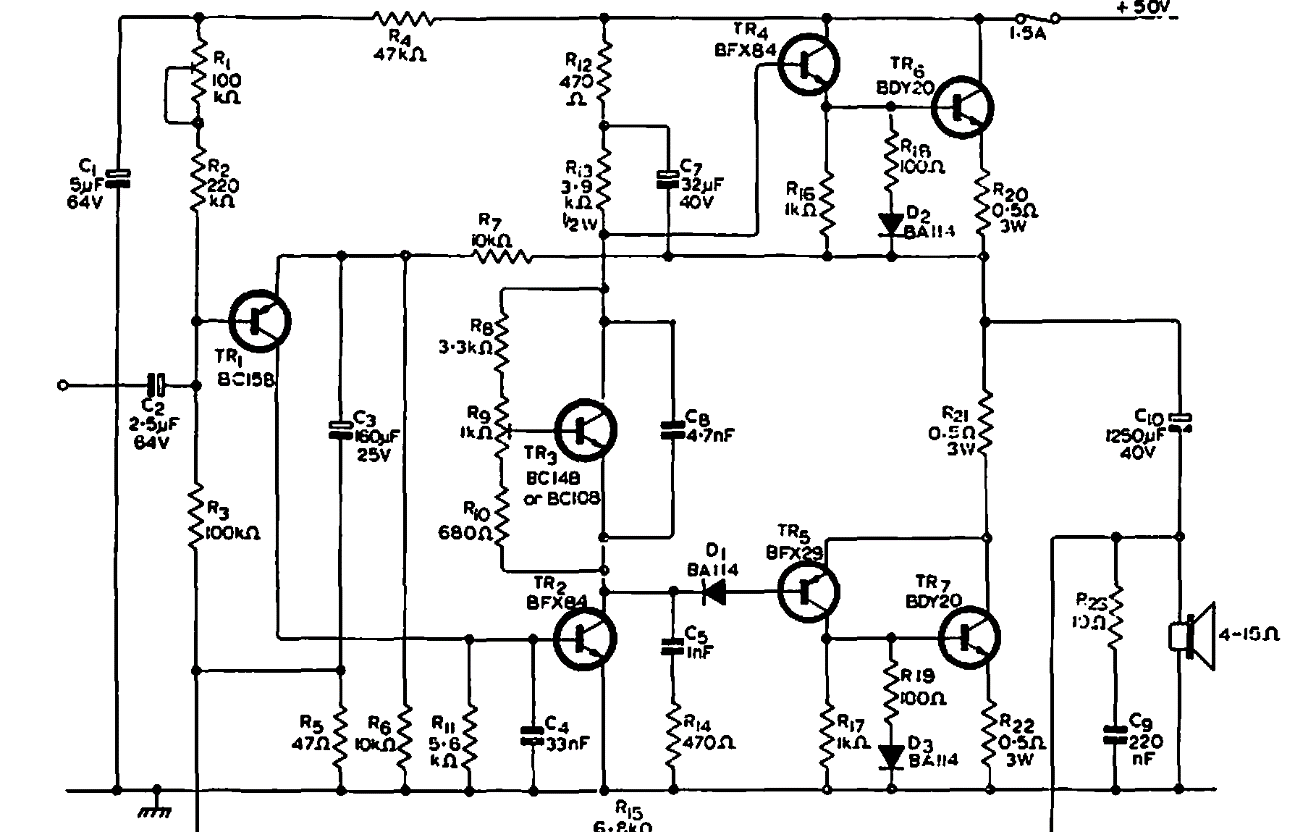

25 W Mullard Amplifier (CB6176E)

Found in an 1868 Mullard documentation this circuit has a dynamic range of 10 Hz to 25,000 Hz. Modern equivalent transistors can be used.
