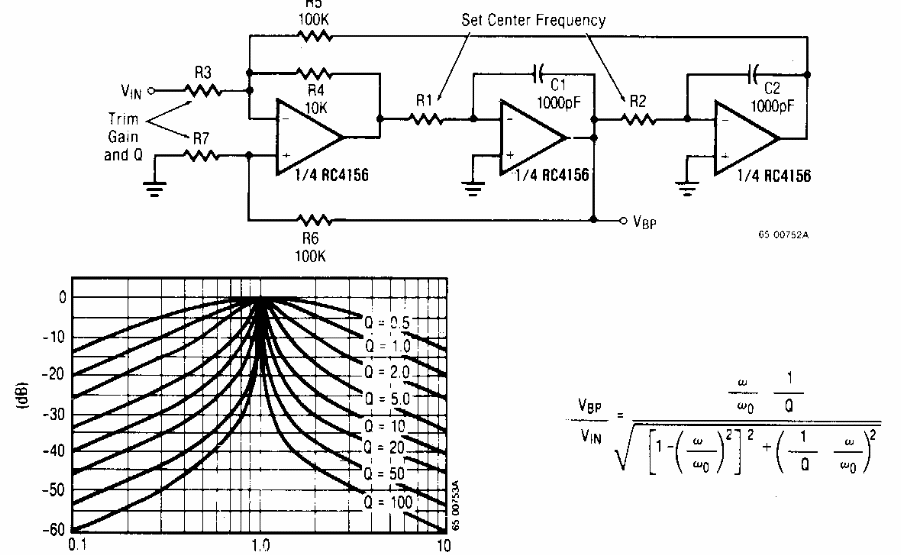

This filter was found in old Raytheon documentation. The circuit makes use of operationals of the time, but the setting can be applied to modern operational. Next to the diagram the behavior curve and the formula for component calculation.
