Humidity sensor (CB6368E)

Details
Written by: Newton C. Braga

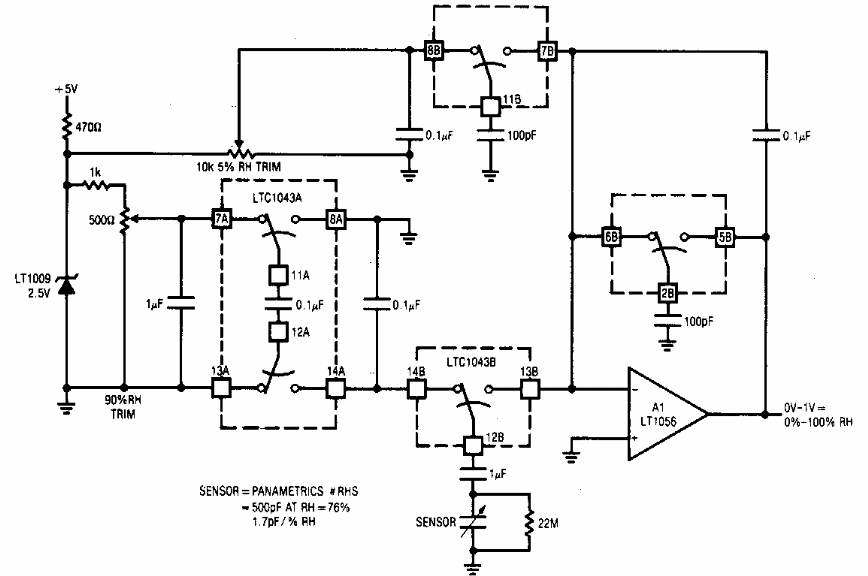

     This signal conditioner humidity sensor was found in a 1980s Linear Technology documentation. The circuit uses components from the era that can be designed with modern equivalents.




| Clique na imagem para ampliar |
