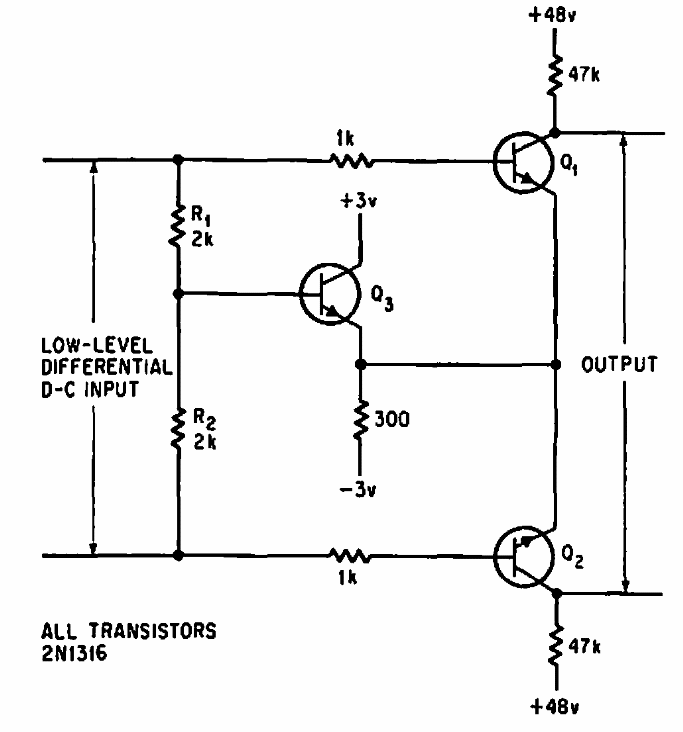

Stabilized 2,000 Gain Amplifier (CB6643E)

This circuit was found in a 1960s documentation, providing a 2,000 gain amplified output.

| Clique na imagem para ampliar |

Basic Transistor Amplifier (CB4936E)
This configuration was found in old documentation and is valid for most general purpose NPN...
Simple Timer (MSB042E)
This circuit uses a capacitor to store energy. The capacitor is charged by closing S1 by a moment. Them,...
Active Cycle Detector (CB6529E)
This circuit was obtained from a Popular Electronics of the 80's. It is set to a certain pulse...
