Power on reset (CB7176E)

Details
Written by: Newton C. Braga

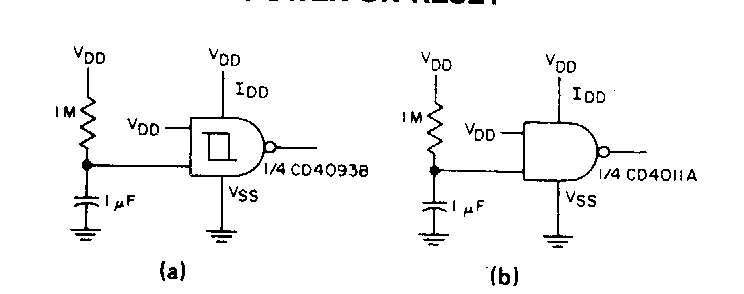

    These reset circuits when the power is turned on were found in an 80's EDN. The circuit also applies to other logic.
