Tunnel diode divider (CB6823E)

Details
Written by: Newton C. Braga

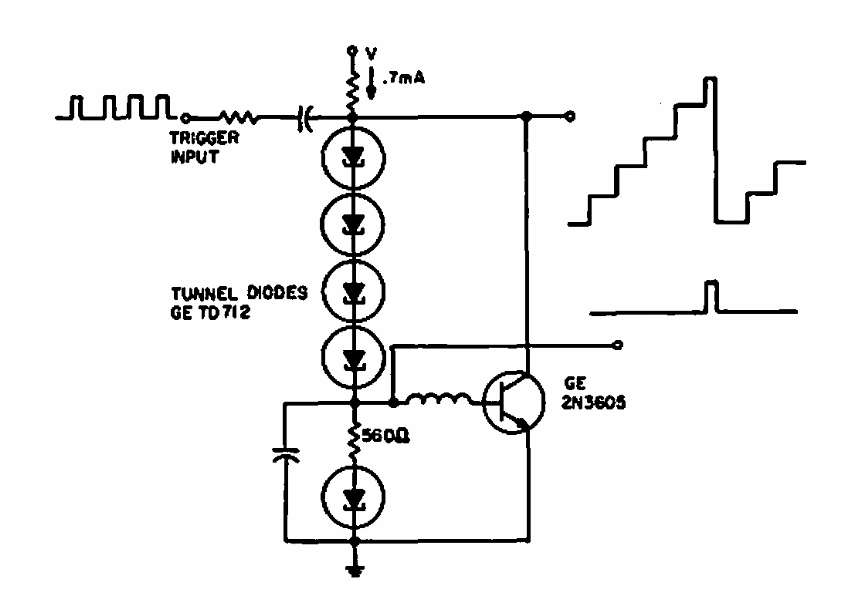

    Found in a 1967 General Electric documentation, this circuit generates a ladder signal from rectangular signals. The used components are uncommon today.




| Clique na imagem para ampliar |
