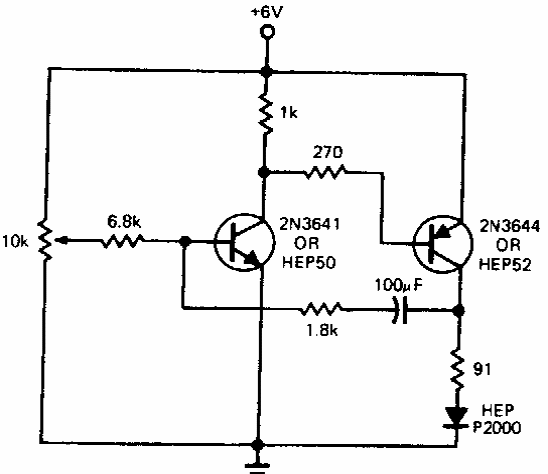

This circuit with only two transistors is from an 80's EDN. It can be implemented with two current general-purpose transistors. The 91-ohm resistor can be changed according to the desired brightness for the LED and the supply voltage.
LED pulsator (CB6944E)
- Details
- Written by: Newton C. Braga
