1 W Amplifier (CB6295E)

Details
Written by: Newton C. Braga

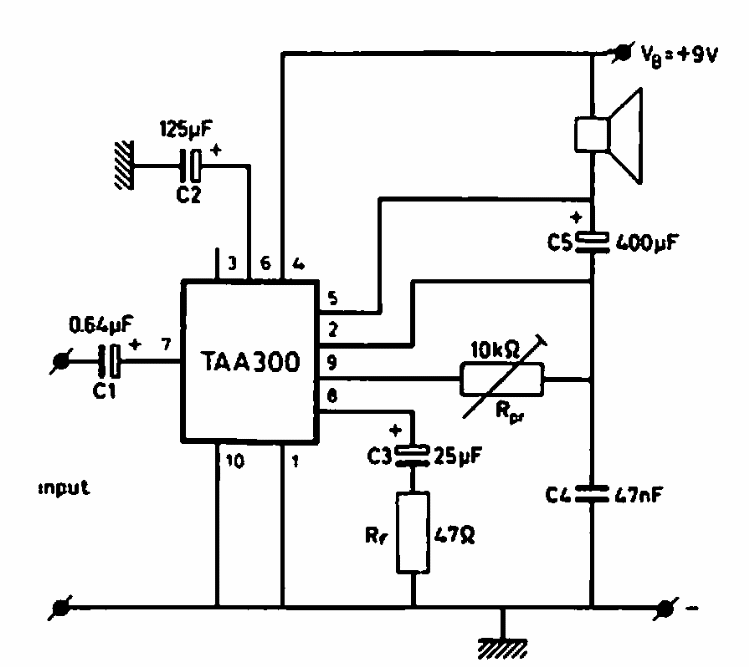

     The TAA300 integrated circuit is not common today. In fact, the circuit shown is from a Dutch Philips documentation from 1969. The output is 8 ohm speaker and 9 V power supply.
