Battery Tester (CB6517E)

Details
Written by: Newton C. Braga

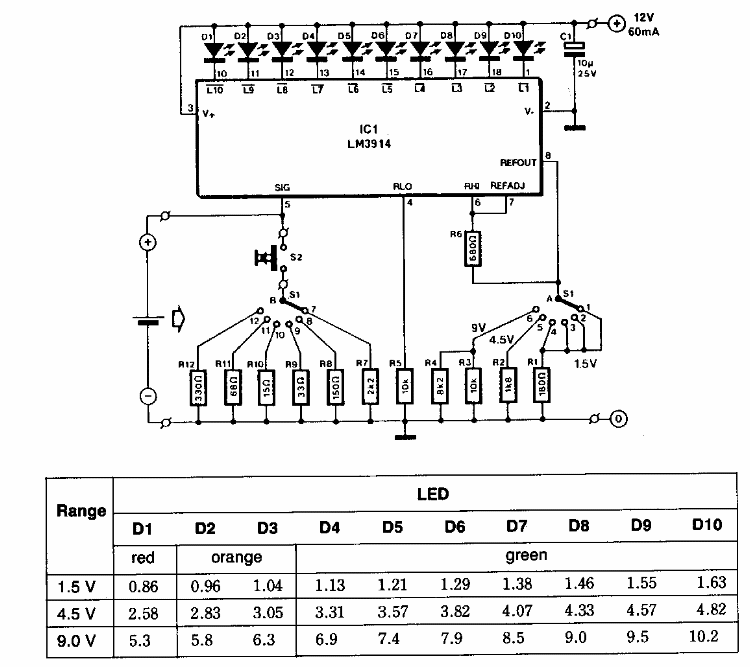

     Found in a 1980s German publication, this circuit tests batteries by type. The circuit is based on a range of LEDs of different colors and is given a table with indications for various voltage ranges.
