1W x 12V Flasher (CB6801E)

Details
Written by: Newton C. Braga

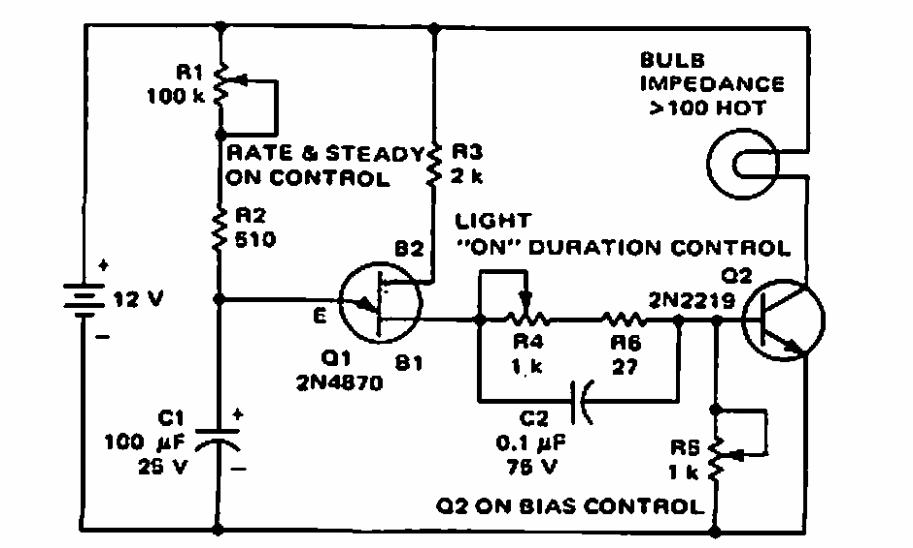

     This circuit was obtained from Motorola documentation. It generates light pulses at a rate of 120 per minute. Equivalent transistors can be used. The circuit can also excite high brightness LEDs.
