Sharp Cut Filter (CB6732E)

Details
Written by: Newton C. Braga

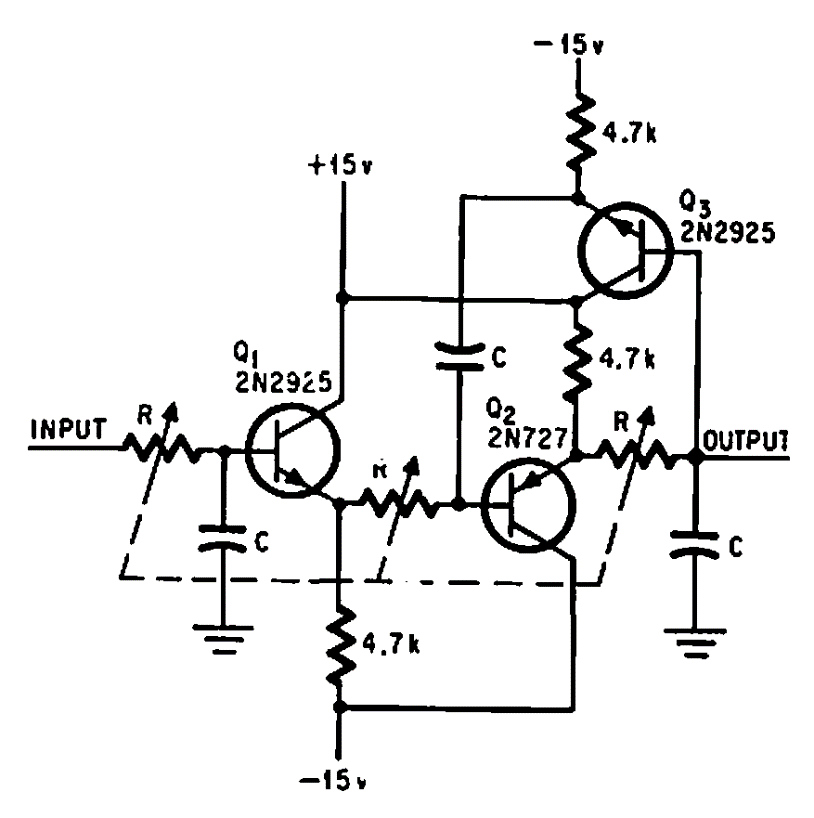

     Found in American documentation from 1968, this circuit has an acute cut-off of the frequency to which it is tuned and which depends on RC. Transistors may be modern equivalents of general use.




| Clique na imagem para ampliar |
