Bicycle speedometer (CB7066E)

Details
Written by: Newton C. Braga

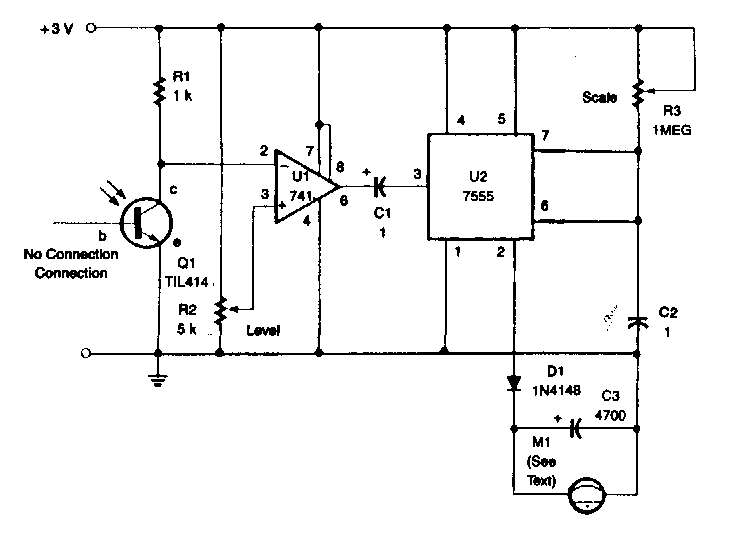

     Using an analog microamperimeter this circuit has a phototransistor adapted to the wheel as a sensor. The circuit is from American documentation from the 1980s, but the components are common today.
