Intrusion alarm (CB7239E)

Details
Written by: Newton C. Braga

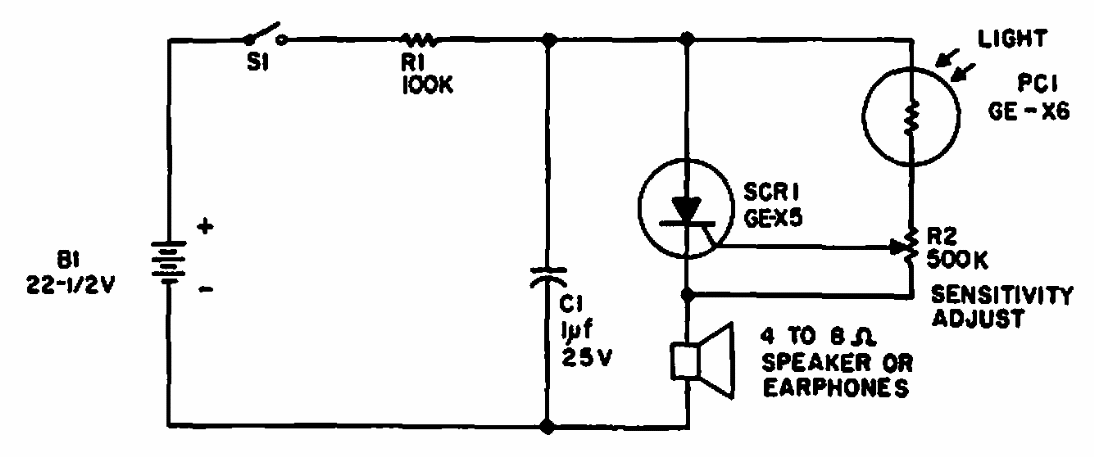

     This circuit is from a 1965 General Electric manual. It uses components from the time that admit equivalents. The SCR can be the TIC106 and the LDR of any type.
