Operational constant current source (CB6634E)

Details
Written by: Newton C. Braga

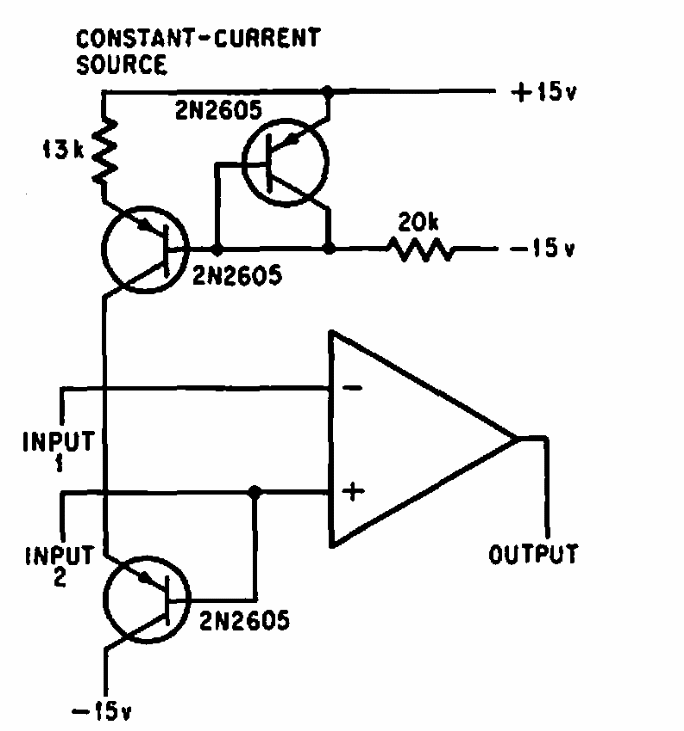

    This circuit was obtained from an American documentation from 1968. The current depends on the operational, observing that the circuit uses a symmetrical power supply.
