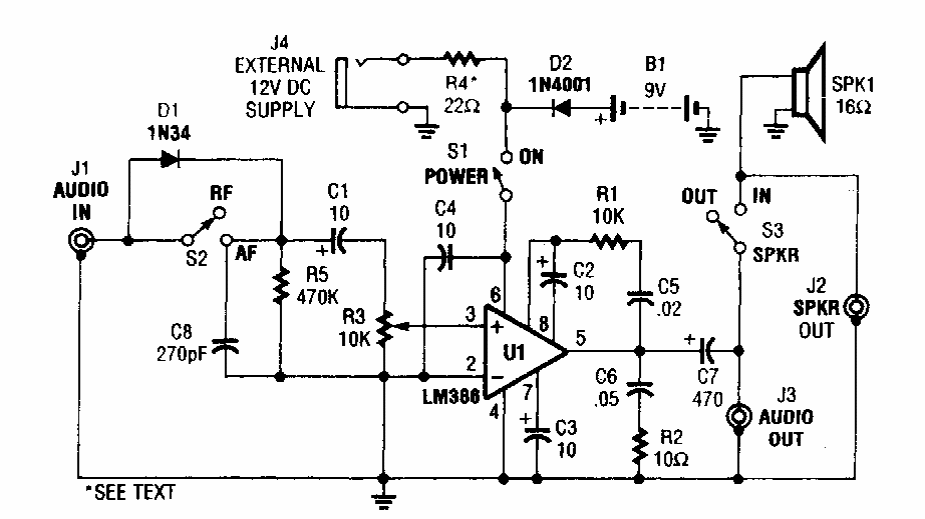

Suggested by a Popular Electronics, this small amplifier that has a detector to follow RF modulated signals is based on well-known integrated. The circuit can be adapted to operate with other integrated amplifiers.
| Clique na imagem para ampliar |
Benchtop Amplifier (CB6978E)
- Details
- Written by: Newton C. Braga
