Dimmer with smooth shutdown (CB7224E)

Details
Written by: Newton C. Braga

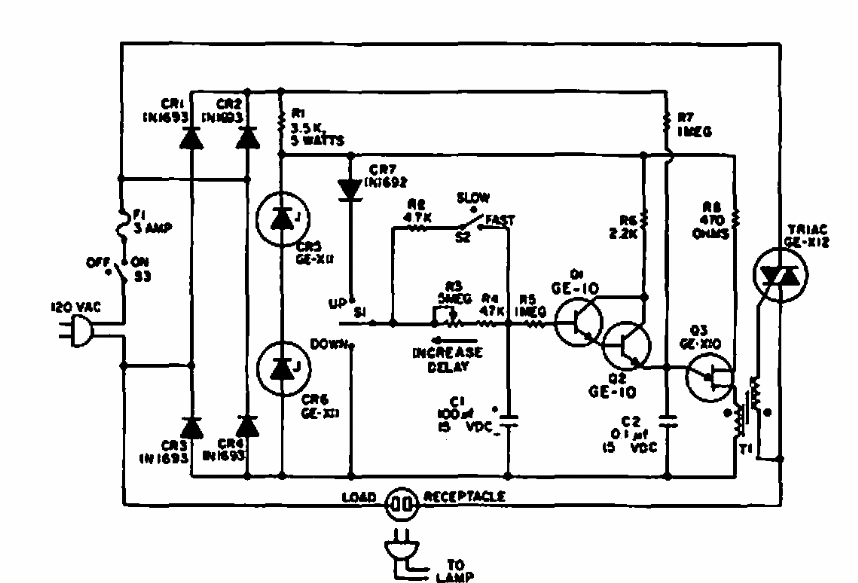

    This circuit was found in General Electric documentation from 1968. The circuit uses triac from the time as well as transistors that can be replaced by modern equivalents.
