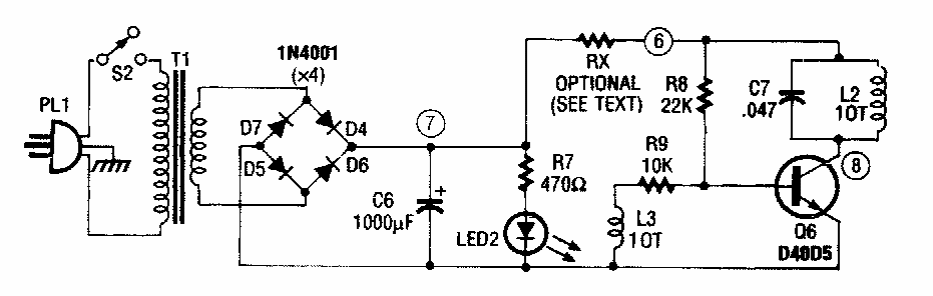

The idea of this 1982 Experimenters Handbook circuit is to generate an RF signal in L2 that can be transmitted to a nearby coil with a rectifier to charge a non-contact battery. L2 has 10 turns of 30 wire. L3 has 10 turns of the same wire.
