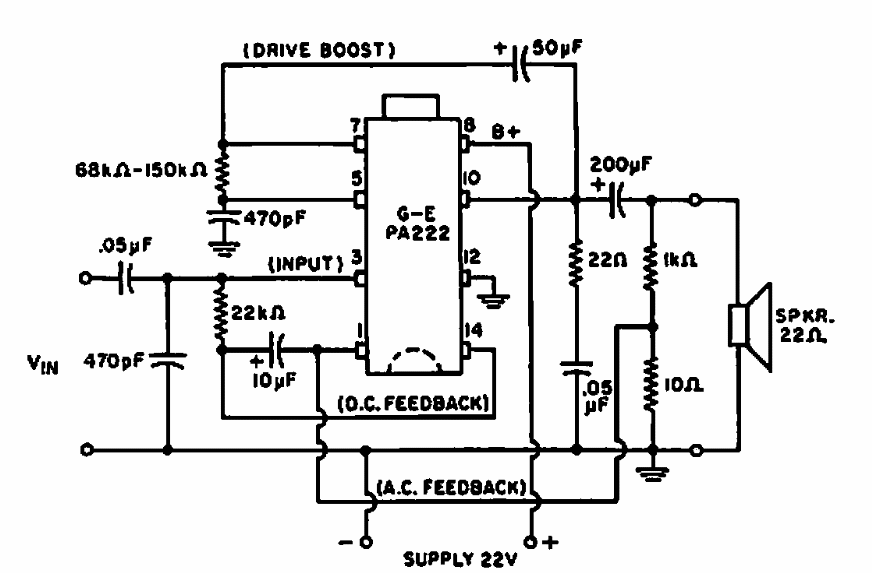

1W Amplifier (CB6293E)

Details
Written by: Newton C. Braga



     The PA222 integrated circuit used in this project from an American 1967 documentation is not common today. The circuit can deliver higher power with lower fidelity.
