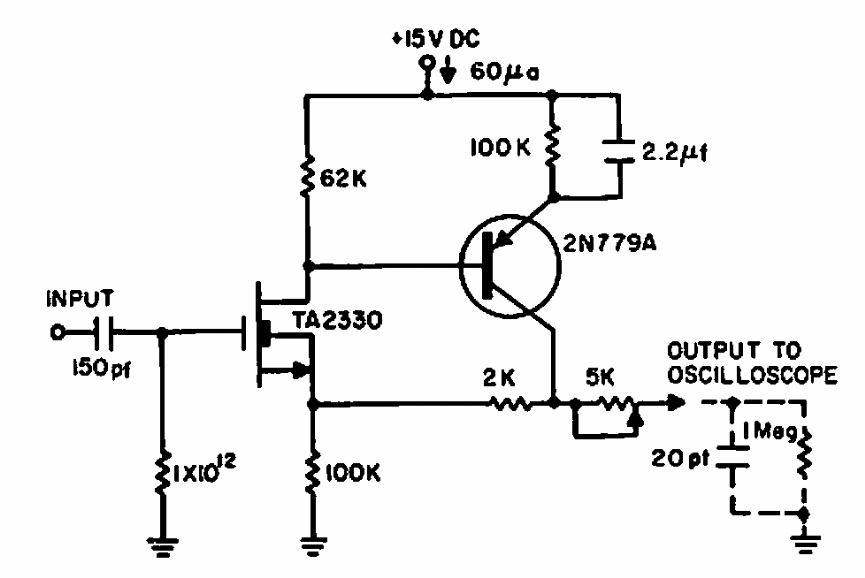

Originally suggested by Electronic Design in a 1965 documentation for use with oscilloscopes, this probe has an input impedance of 1,000,000 M ohm. The gain is unity and the parallel capacitance is 2 pF.
| Clique na imagem para ampliar |
High Impedance Probe (CB6454E)
- Details
- Written by: Newton C. Braga
