This circuit was obtained from a 1966 documentation. The transistors are of the time. The circuit must be powered by symmetrical source. Signals can be up to 14 MHz with 0.5 V amplitude.
| Clique na imagem para ampliar |

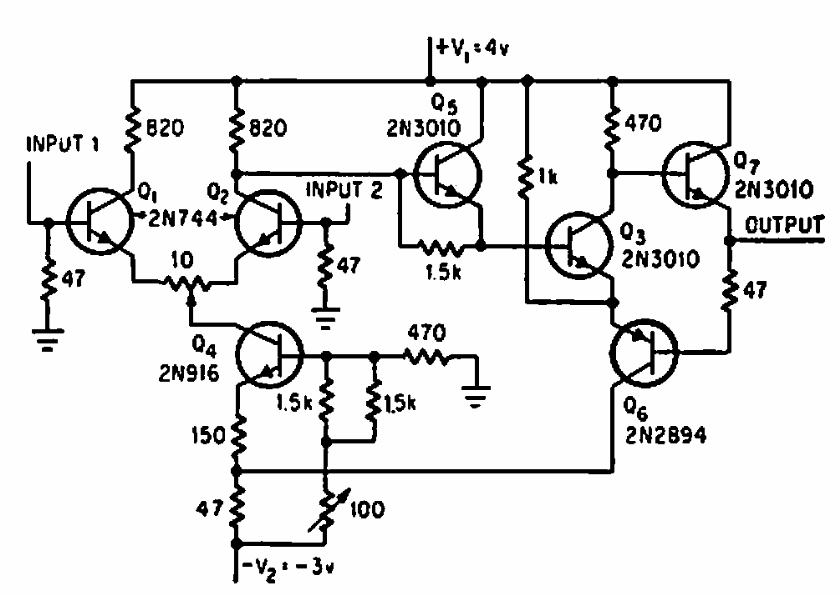

Weak Signal Differential Detector (CB6665E)
- Details
- Written by: Newton C. Braga
