Infrared Receiver (CB7018E)

Details
Written by: Newton C. Braga

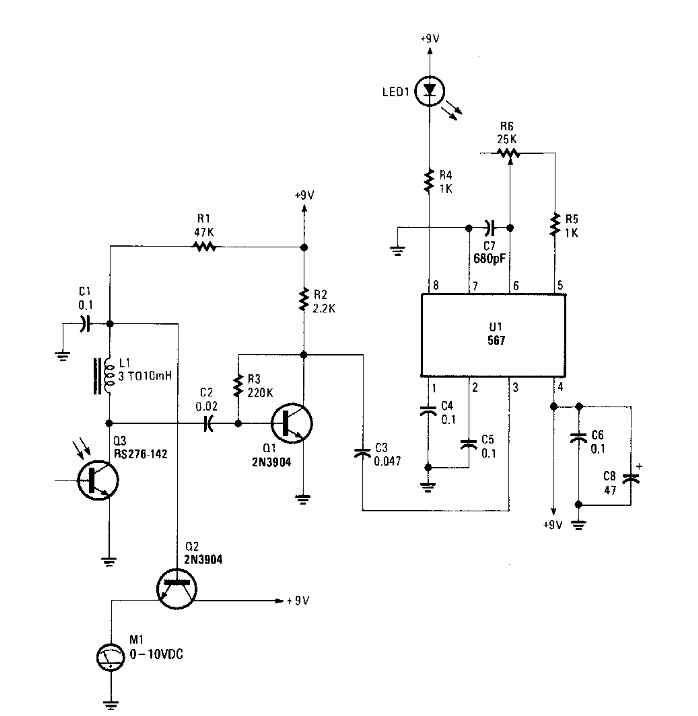

    Found in a Popular Electronics from the 90's, this circuit is used to recognize the frequency of a modulated infrared signal. The LM567 circuit must not be supplied with voltages above 9 V.
