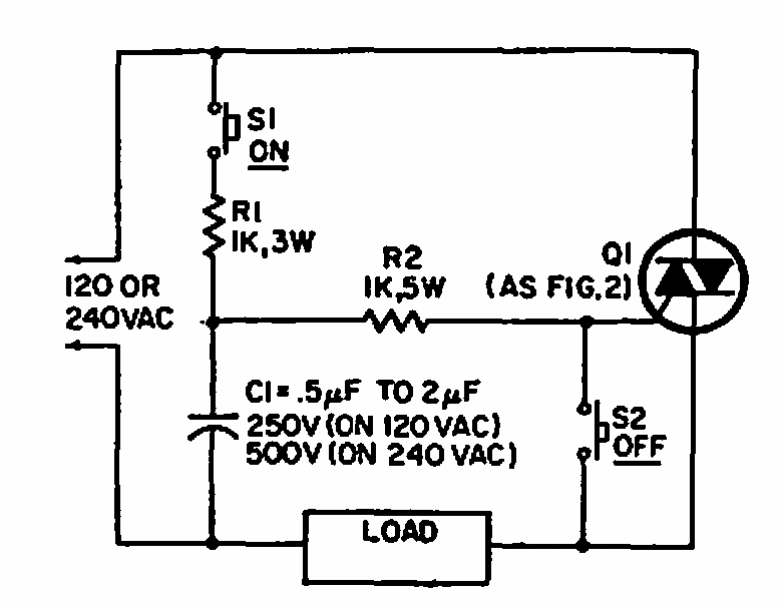

Locked Triac (CB7238E)

Details
Written by: Newton C. Braga



    This is a circuit found in a 1970's Radio Electronics. The circuit works with virtually any triac that must match the load.
