Dual control with SCR (CB7223E)

Details
Written by: Newton C. Braga

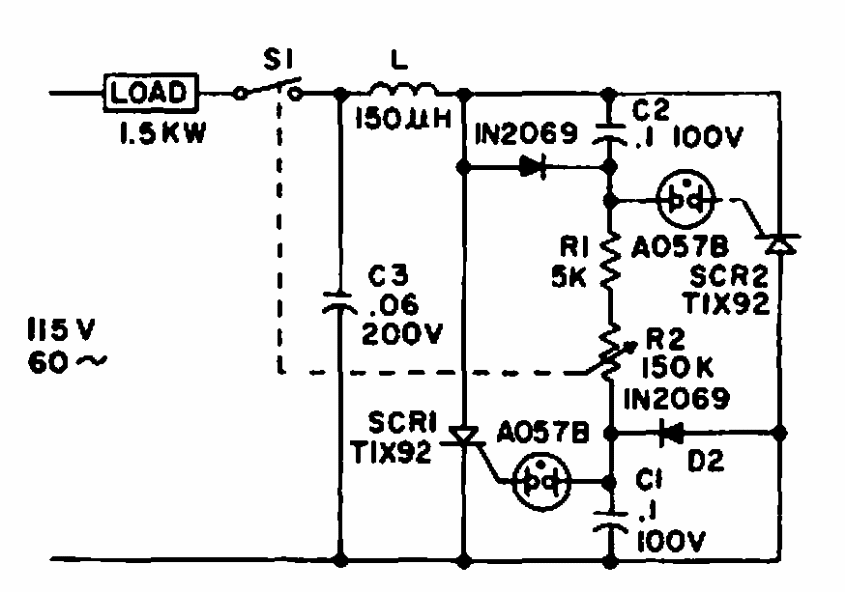

     This 1960s Signalite circuit uses two SCRs to achieve full wave control. The trigger elements are neon lamps.
