Transient Conditioner (CB6453E)

Details
Written by: Newton C. Braga

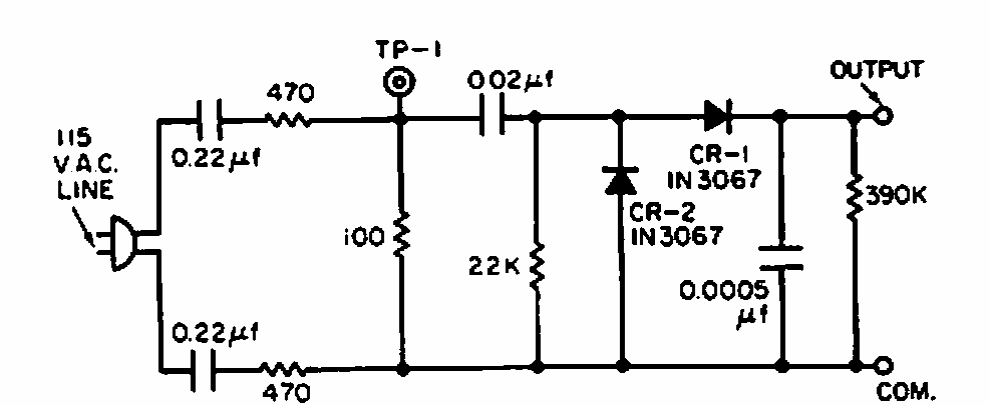

    This circuit was proposed by a 1965 Electronic Design. Its purpose is to widen the line transients to make them easier to see on common oscilloscopes.
