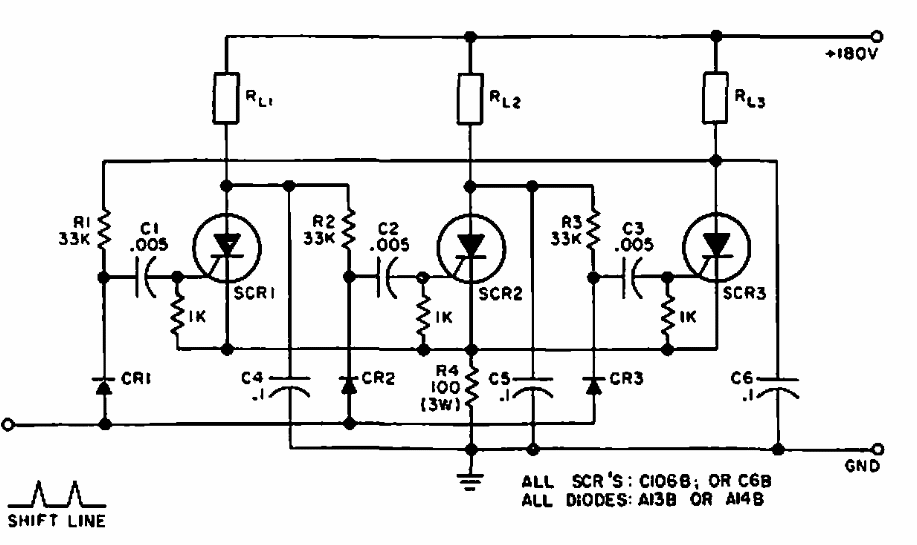

Ring counter (CB6597E)

Details
Written by: Newton C. Braga



     Found in 1967 General Electric documentation this circuit appears elsewhere in this section. SCRs are common to the 106 Series and more steps can be added to the circuit.
