Avalanche Oscillator (CB7112E)

Details
Written by: Newton C. Braga

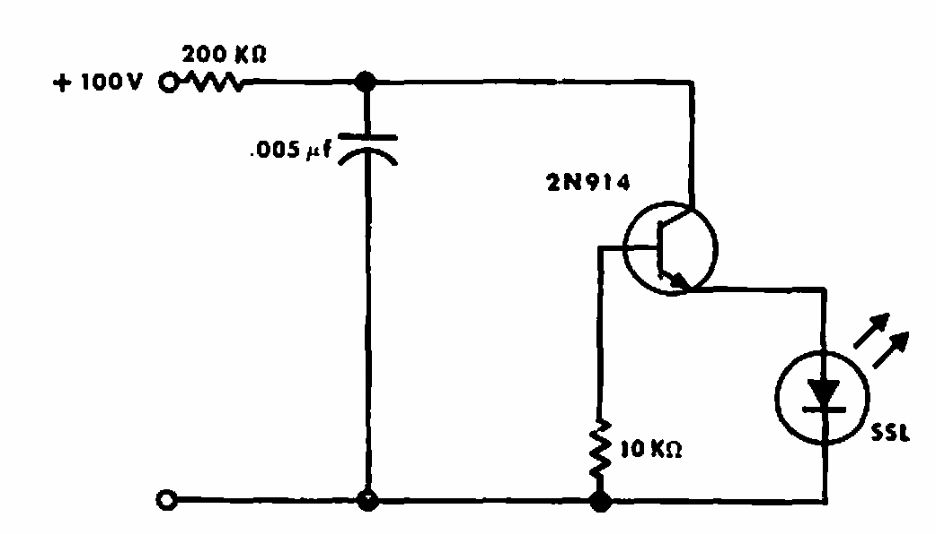

    Found in a General Electric documentation from 1970, this circuit consists of a relaxation oscillator that uses a transistor from that time.
