Light Pulse Duration Meter (CB6752E)

Details
Written by: Newton C. Braga

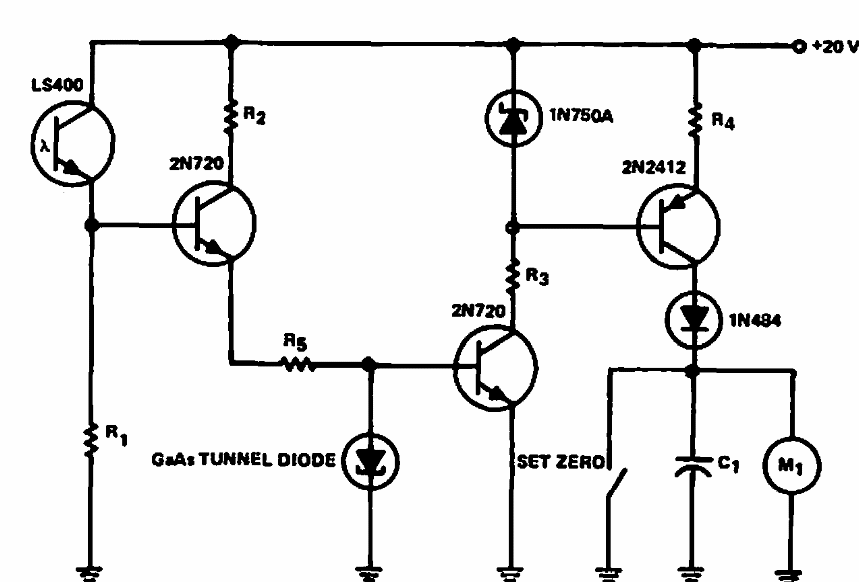

     Indicated by Texas Instruments, this 1968 circuit measures the duration of a light pulse captured by a phototransistor. Equivalent phototransistors and transistors may be used.
