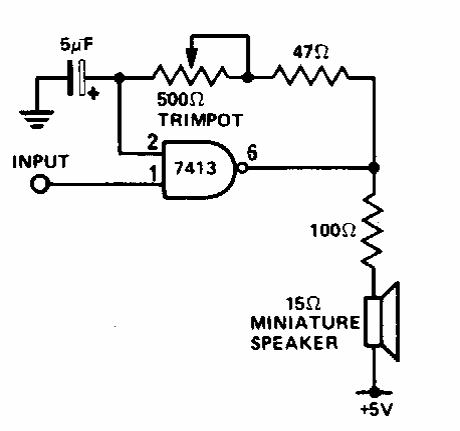

Found in an English documentation from the 90's, this circuit makes slow logical pulses audible, facilitating its analysis. The circuit can be used with microcontrollers and must be powered with 5 V.
Audible pulse analyzer (CB7139E)
- Details
- Written by: Newton C. Braga
