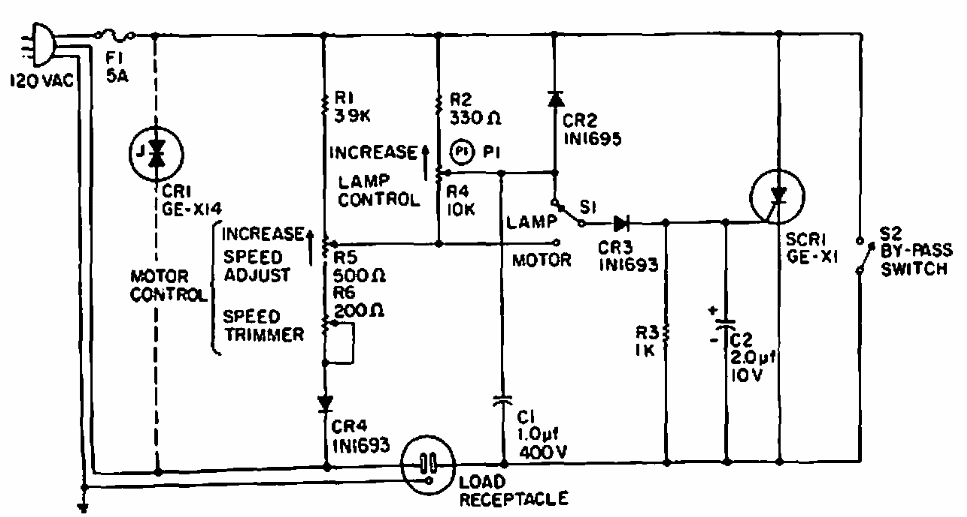

This circuit can control the power from 0 to 70% of the maximum power on a load. The circuit was found in a 1965 General Electric documentation. The components are from that time, and the SCR can be replaced by the current type.
| Clique na imagem para ampliar |
